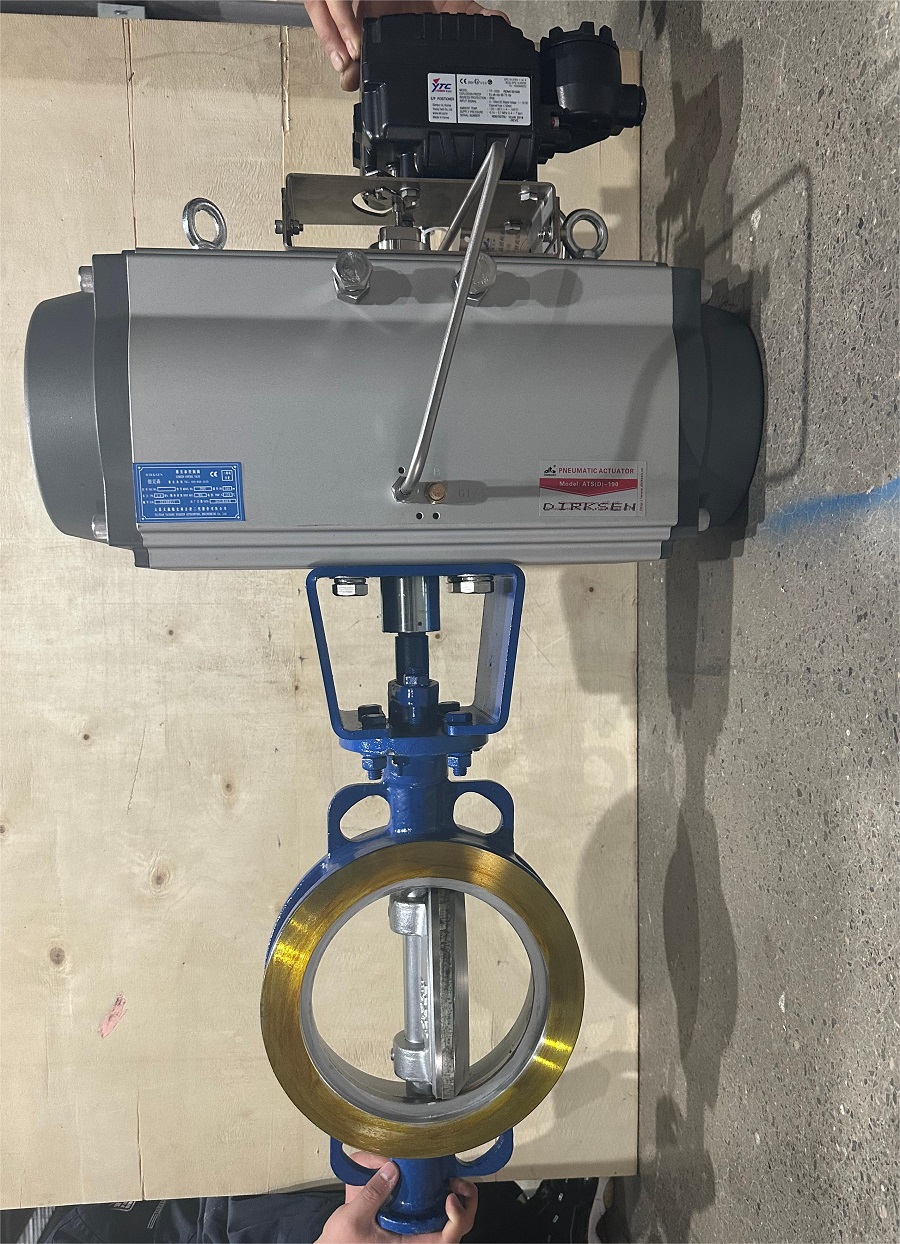

·Adoption of triple eccentric structure
·The disc and seat have a unique sealing design, which can achieve dynamic sealing.
·Excellent cut-off performance and durability, large flow capacity, and small leakage
Nominal diameter:DN 50～DN 2000
Nominal pressure:PN 16、25、40
Flow characteristic:similar equal percentage
Operating temperature:-40℃～600 ℃
Seat leakage class:hard seal V、VI class,soft seal VI class
Connection type:flange、clip
Actuator:pneumatic piston actuator、electric actuator
